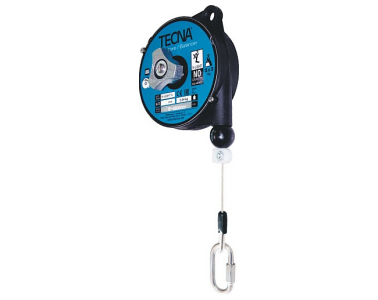

Ackermann Hangmann SM980922-2 Type LOCKING BALANCER UNIT BFL-13

Ackermann Hangmann – LOCKING BALANCER UNIT BFL-13 (SM980922)

MAIN FEATURES
Rugged construction, Nylon body.
Stainless steel rope.
Adjustable capacity.
Safety suspension.
Adjustable stroke limiting device.
Cable guide in antifriction material.
Inert spring drum assembly.
Polyamides thimble.

The Aero-Motive BFL13 (also known by part number SM980911) is a light industrial-duty tool balancer designed to suspend tools weighing between 9.0 to 13.0 lbs (4.1 to 5.9 kg), reducing operator fatigue and enhancing workplace safety.

🔧 Key Specifications
Model: BFL13

Weight Capacity: 9.0 to 13.0 lbs (4.1 to 5.9 kg)

Cable Travel: 6.6 feet (2.00 meters)

Cable Material: 3/32″ diameter stranded galvanized steel

Housing: High-impact composite for durability

Features:

Heavy-duty, long-life spring for consistent performance

Ratchet lock mechanism to hold the tool at the desired position

Automatic lock to prevent load drop if spring tension is lost

Snap-type tool clip for easy attachment and removal

Forged steel 360° swivel hanger for flexible mounting

Shackle design for secure mounting
